 Code for Fractol 
 

The term fractal was first used by mathematician Benoit Mandelbrot in 1974.

He based it on the Latin word fractus which means "broken" or "fractured".

A fractal is an abstract mathematical object, like a curve or a surface, which pattern remains the same at every scale.

Various natural phenomena – like the romanesco cabbage – have some fractal features.

⏯️ FRACTALES Videos presentation

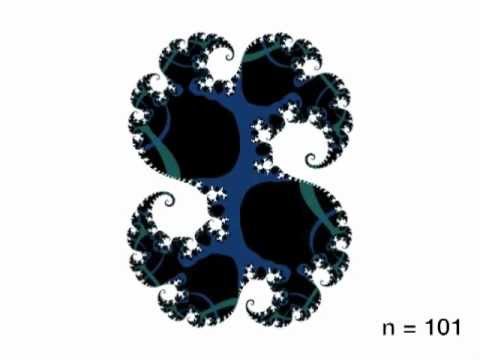

⏯️ How to make Julia FRACTALES

⏯️ How to make Mandelbrot FRACTALES

Requirements

• Use the school graphical library: the MiniLibX
  • Includes basic necessary tools to open a window, create images and deal with keyboard and mouse events
• Use the mathematical notion of complex numbers, to take a peek at the concept of optimization in computer graphics and practice event handling

Julia and Mandelbrot Sets

🔢 Live Preview + Explanation | 🧮 Math in details

➿ Explanation with great creation a fractal step by step ⬆️ ⬆️

Mandelbrot Set $\ Z_{n+1} = {Z_{n}}^2 + {Z_0} $

Mandelbrot set is generated by iterating a simple function on the points of the complex plane. The points that produce a cycle (the same value over and over again) fall in the set, whereas the points that diverge (give ever-growing values) lie outside it.

The initial value of $\ Z$ is always 0, and the constant c is determined by the coordinates of the point in the complex plane being considered.

$\ Z = Z^2 + c $

$\ Z_{n+1} = {Z_{n}}^2 + {Z_0} $

The set iterate from $\ n = 0$ to $\ n_{MaxIteration}$ and does not diverge out of the bounded in absolute value.

$\ c $ is a complexe number : $\ c = a + bi$, $\ a$ reel part and $\ bi$ imaginary part. that complexe number is determined with coordinates in the complex plane.

$\ Z = (a + bi)^2 + c$

$\ Z = a^2 + 2abi + b^2i^2 + c$ Taking into account: $\ i^2 = -1$

$\ Z = a^2 + 2abi - b^2 + c$

For code purpose:

$\ aa = a^2 - b^2$

$\ bb = 2 * a * b$

$\ Z = aa + bb + c$

To adjust: c = scale + offset

$\ a = aa + c_x$ with $\ c_x = (x - \frac{WIDTH}{2.0}) + \frac{4.0}{HEIGHT}$

$\ b = bb + c_y$ with $\ c_y = (y - \frac{HEIGHT}{2.0}) + \frac{4.0}{WIDTH}$

If magnitude $\ Z = a + b$ diverge out of bound (> 4), the set diverge else it converge. Display the set accordingly.

int ft_mandelbrot_set(double x, double y, int max_iterations)
{
 double scaled_x;
 double scaled_y;
 double real;
 double imaginary;
 double a;
 double b;
 int  count;

 scaled_x = (x - WIDTH / 2) * 4 / WIDTH;
 scaled_y = (y - HEIGHT / 2) * 4 / HEIGHT;
 a = 0;
 b = 0;
 count = 0;
 while (count < max_iterations)
 {
  real = (a * a) - (b * b);
  imaginary = 2 * a * b;
  a = real + scaled_x;
  b = imaginary + scaled_y;
  if (b + a > 4)
   return (count);
  count++;
 }
 return (count);
}

To center content/ offset with $\ c$ :

• x and y are the pixel coordinates in the display. WIDTH and HEIGHT are the dimensions of your display area. The (x - WIDTH / 2.0) and (y - HEIGHT / 2.0) parts shift the coordinate system so that the center of your display corresponds to (0, 0) in the complex plane.
• The multiplication by 4.0 / WIDTH and 4.0 / HEIGHT scales the coordinates so that you are looking at a region that spans -2 to 2 (both in real and imaginary parts) in the complex plane. This scaling factor of 4.0 is somewhat arbitrary and can be adjusted based on your preferences to zoom in or out of the Mandelbrot set.

Mandelbrot - Complexe Analysis

Mandelbrot -> contains julia sets

The key difference between the Mandelbrot set and the Julia set is that the Mandelbrot set uses the coordinates of the point in the complex plane to determine if the point is in the set, while the Julia set uses a constant value for all the points in the set.

Julia Set$\ Z_{n + 1} = Z_n + c$

$\ Z = a + bi$ where a and b => represent x and y axis.

$\ Z$ is repeatedly updated using: $\ Z = Z^2 + c$ where $\ c$ is another complex number that gives a specific Julia set. So $\ c$ is a fixed complex number = a constant.

After numerous iterations, if the magnitude of $\ Z$ is less than 2 we say that pixel is in the Julia set and color it accordingly. Performing this calculation for a whole grid of pixels gives a fractal image.

static int ft_julia_set(double x, double y, int max_iterations)
{
 double real;
 double imaginary;
 double a;
 double b;
 int  count;

 a = (x - WIDTH / 2) * 4 / WIDTH;
 b = (y - HEIGHT / 2) * 4 / HEIGHT;
 count = 0;
 while (count < max_iterations)
 {
  real = (a * a) - (b * b);
  imaginary = 2 * a * b;
  a = real + c_real;
  b = imaginary + c_imaginary;
  if (b + a > 2)
   return (count);
  count++;
 }
 return (count);
}

julia set - complexe analysis

Burning Ship

The difference between this calculation and that for the Mandelbrot set is that the real and imaginary components are set to their respective absolute values before squaring at each iteration.

Code for burning ship

static int ft_burningship_set(
 double x,
 double y,
 t_fractol *fractol,
 int count)
{
 double scaled_x;
 double real;
 double imaginary;
 double a;
 double b;

 scaled_x = fractol->fra.x + (x - WIDTH / 2) * fractol->fra.zoom / WIDTH;
 fractol->fra.param_storage = fractol->fra.y
  + (y - HEIGHT / 2) * fractol->fra.zoom / HEIGHT;
 a = 0;
 b = 0;
 count = 0;
 while (count < fractol->fra.max_iterations)
 {
  real = (a * a) - (b * b);
  imaginary = 2 * a * b;
  a = fabs(real + scaled_x);
  b = fabs(imaginary + fractol->fra.param_storage);
  if (b + a > 4)
   return (count);
  count++;
 }
 return (count);
}

/**
 * * Draw mandelbrot fractal
 * @param: fractol
*/
void ft_burningship(t_fractol *fractol)
{
 double x;
 double y;
 int  iter;

 iter = 0;
 x = 0;
 while (x < WIDTH)
 {
  y = 0;
  while (y < HEIGHT)
  {
   iter = ft_burningship_set(x, y, fractol, iter);
   if (iter == fractol->fra.max_iterations)
    fractol->fra.fractal_data[(int)(x + y * WIDTH)]
     = fractol->col.color_array[fractol->col.color_number - 1];
   else
    fractol->fra.fractal_data[(int)(x + y * WIDTH)]
     = fractol->col.color_array[ft_colormode(iter, fractol)];
   y++;
  }
  x++;
 }
}

Ideas for other (escaped time) fractales

• Newton fractal

• Lyapunov fractal

Math

Complexe Number

🔗 Details

A complex number is a number that can be written in the form $\ a+bi$, where a and b are real numbers and i is the imaginary unit defined by $\ i^2=−1 $.

The set of complex numbers, denoted by $\mathbb{C}$ , includes the set of real numbers $\mathbb{R}$ and the set of pure imaginary numbers.

Based on the nature of the real part and imaginary part, any complex number can be classified into four types:

• imaginary number
• zero complex number
• purely imaginary number
• purely real number.

For $\ Z=a+ib$, the following four cases arise:

1. If $\ a = 0$ and $\ b \neq 0$, then $\ Z$ is an imaginary number.
2. If $\ a = 0$ and $\ b = 0$, then $\ Z$ is a zero complex number.
3. If $\ a \neq 0$ and $\ b = 0$, then $\ Z$ is a purely real number.
4. If $\ a \neq 0$ and $\ b \neq 0$, then $\ Z$ is a complex number.

Every real number is a complex number, but every complex number is not necessarily a real number.

The set of all complex numbers is denoted by $\ Z ∈ \mathbb{C} $. The set of all imaginary numbers is denoted as $\ Z ∈ \mathbb{C−R} $.

Magnitude

The magnitude of a number (also called its absolute value) is its distance from zero, so

• the magnitude of 6 is 6
• the magnitude of −6 is also 6

The magnitude of a vector is its length (ignoring direction).

For a complex number $\ Z = a + bi$, we define the magnitude, $\ |Z|$, as follows:

$\ |Z| = \sqrt{a^2 + b^2} $

Coloring

🔗 Coloring/Plotting Algorithm

Escape Time

The simplest algorithm for generating a representation of the Mandelbrot set is known as the "escape time" algorithm. A repeating calculation is performed for each x, y point in the plot area and based on the behavior of that calculation, a color is chosen for that pixel.

Color based on escape of iterations loop within bound $\R$ of the circle of radius ($\ |Z| < 2$ for exemple with mandelbrot)

Normalize Iterations Count Algorithm

The escape time algorithm is popular for its simplicity. However, it creates bands of color, which, as a type of aliasing, can detract from an image's aesthetic value. This can be improved using an algorithm known as "normalized iteration count", which provides a smooth transition of colors between iterations. The algorithm associates a real number ν \nu with each value of z by using the connection of the iteration number with the potential function.

...
